1W & 2W 808nm High Power Diode Lasers
Features
Applications
Specifications
(25oC)
|
Model No. |
LD-808-1W50 |
LD-808-1W52 |
LD-808-1W3 |
LD-808-1W3N |
LD-808-1WC |
LD-808-2W3 |
LD-808-2W3N |
LD-808-2WC |
| CW Output
Power (mW) |
1000 |
1000 |
1000 |
1000 |
1000 |
2000 |
2000 |
2000 |
| Peak
Wavelength λ
(nm) |
808+/-5 |
808+/-5 |
808+/-5 |
808+/-5 |
808+/-5 |
808+/-5 |
808+/-5 |
808+/-5 |
| Spectral
Width Dλ
(nm) |
£3 |
£3 |
£2.5 |
£2.5 |
£2.5 |
£2.5 |
£2.5 |
£2.5 |
| Threshold
Current (A) |
£0.26 |
£0.26 |
£0.25 |
£0.25 |
£0.25 |
£0.50 |
£0.50 |
£0.50 |
| Operating
Current (A) |
£1.3 |
£1.3 |
£1.24 |
£1.24 |
£1.24 |
£2.55 |
£2.55 |
£2.55 |
| Operating
Voltage (V) |
£2.1 |
£2.1 |
£2.0 |
£2.0 |
£2.0 |
£2.0 |
£2.0 |
£2.0 |
| Monitoring
Photodiode |
No |
Yes
(Common Anode) |
No |
No |
No |
No |
No |
No |
| Slope
Efficiency (W/A) |
³1.0 |
³1.0 |
³1.0 |
³1.0 |
³1.0 |
³1.0 |
³1.0 |
³1.0 |
| Beam Divergence
θ┴×θ║
(deg) |
40
x 10 |
40
x 10 |
38
x 10 |
38
x 10 |
38
x 10 |
38
x 10 |
38
x 10 |
38
x 10 |
| Wavelength
Temperature Coefficient (nm/oC) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
| Emitting
Area (µm) |
100
x 1 |
100x1 |
100x1 |
100x1 |
100x1 |
200x1 |
200x1 |
200x1 |
| Series
Resistance (Ω) |
£0.50 |
£0.50 |
£0.30 |
£0.30 |
£0.30 |
£0.25 |
£0.25 |
£0.25 |
| Polarization |
TE |
TE |
TE |
TE |
TE |
TM |
TM |
TM |
| Package Style |
TO5
(9mm) |
TO5
(9mm) |
TO3 with
removable metal cap |
TO3 with
non-removable metal cap |
C-block |
TO3 with
removable metal cap |
TO3 with
non-removable metal cap |
C-block |
| Absolute
Maximum Ratings |
|
| Reverse
Voltage Vr (V) |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
| Operating
Temperature (oC) |
10
to 30 |
10
to 30 |
10
to 25 |
10
to 25 |
10
to 25 |
10
to 25 |
10
to 25 |
10
to 25 |
| Storage
Temperature (oC) |
-40
to 85 |
-10
to 60 |
-10
to 60 |
-10
to 60 |
-10
to 60 |
-10
to 60 |
-10
to 60 |
-10
to 60 |

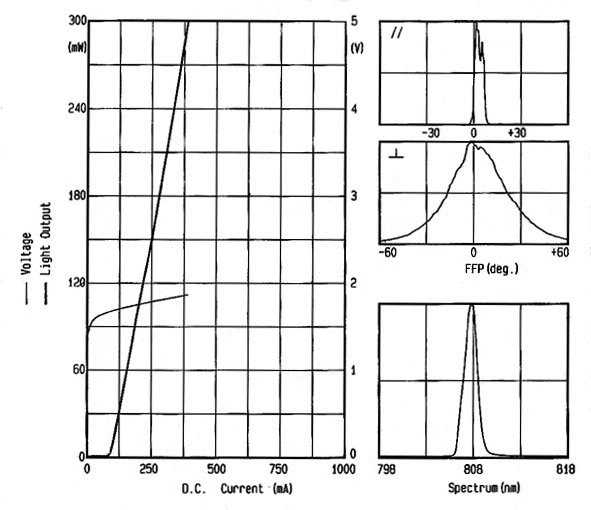

Typical
Performance Curves

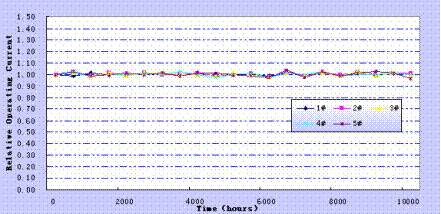

Life
time test:
Lifetime test
of 1W 808nm laser diode LD808-1W-X :
1.3A
CW @ 23+/-3 oC
Lifetime test
of 2W 808nm laser diode LD808-2W-X:
2.4A
CW @ 23+/-3 oC
Please
click here for the mechanical dimensions of TO-3, TO-5 & C-block pakages.
Notes
-
Use
appropriate power supply. Transient reverse current greater than 25μA and
/or reverse voltage >2V will destroy the unit.
-
A
dry environment should be provided when storing or operating a device at
temperatures below the ambient dew point. Failure to do so will cause
condensation on the unit and will destroy it.
-
Output
powers in excess of specification data will accelerate device aging.
-
Operating
units require adequate heat dissipating or refrigeration.
-
Operation
at higher temperatures will accelerate device aging, increase threshold
current and lower slope efficiency.
-
To
C-block unit, be
sure to keep the diode clean.
Note: The above specifications are
subject to change
without notice.
|
