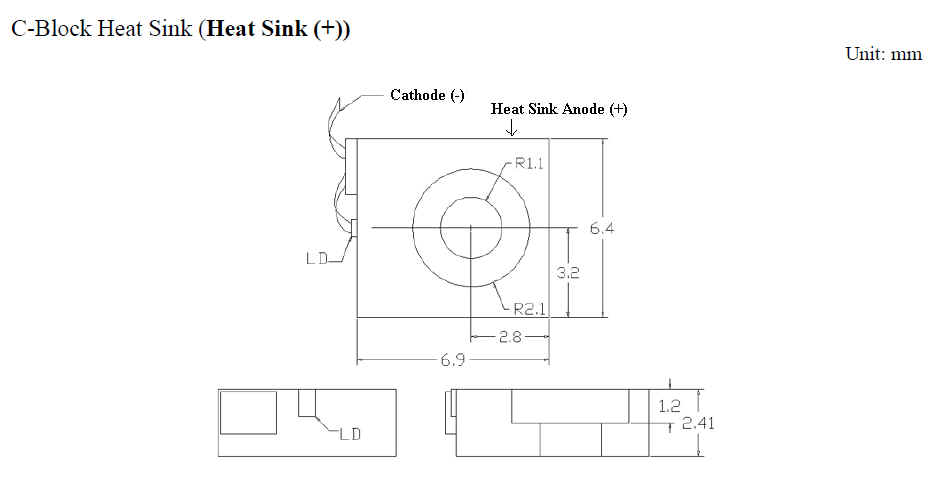

TO-3, TO-9 & C-block Packages for High Power Diode Lasers

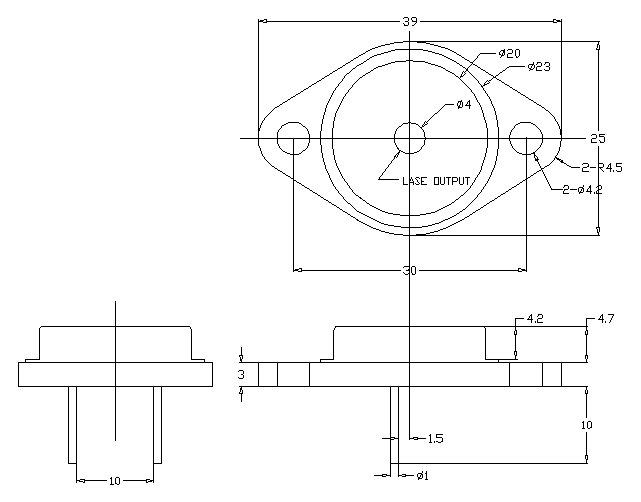

TO-3 Package（Unit: mm）

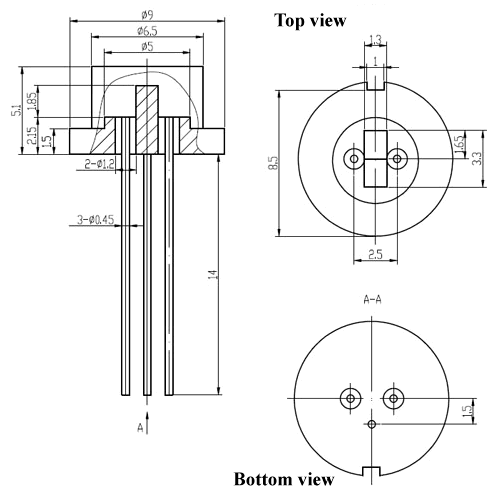

TO-9 Package（Unit: mm）

Mechanical Outline (Unit: mm)

Pin Configuration

1. No Monitoring PD

Pin #1: LD (-)

Pin #2: LD (+)

Pin #3: NA

2. Common Anode

Pin #1: LD (-)

Pin #2: LD (+) /PD (-)

Pin #3: PD (+)



 Note: The above specifications are subject to change without notice.
